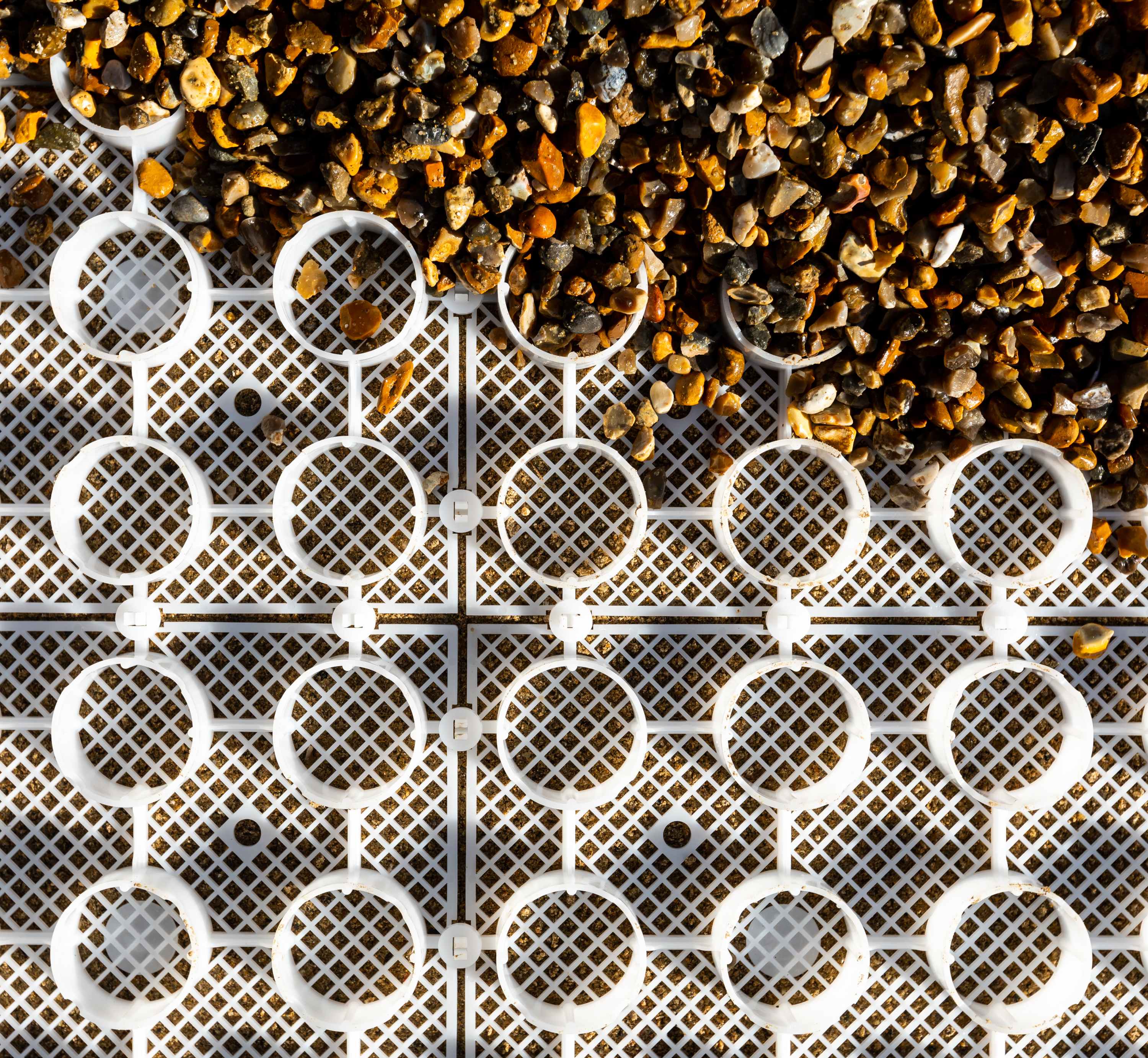

Earthworx Ground Control Gravelrings 500 mm x 500 mm
Keep gravel stable and permeable on paths, driveways and parking areas with Earthworx Gravelrings.
- Interlocking 500 x 500 mm panels are supplied four to a pack, covering 1 m².
- Available in black or white, with a 25 mm panel depth.
- Use 6–20 mm angular quarried aggregate; rounded or marine-washed gravel is not recommended.
SKU: 205140
Brand: Growtivation
Description
Earthworx Gravelrings are a cost effective method to providing a stable and permeable gravel retention system to surfaces. Ideal for use on driveways, walkways, car parking areas on estates, golf courses and caravan parks. The unique design stops loose aggregate moving from the cells making it wheelchairs and pushchair user friendly.
Groundtex Geotextile Fabric can be used underneath the gravelrings as a weed membrane.
| Before | After |
|---|---|
 |
 |
Key Features
- Excellent load bearing capacity - 350 tonnes per m²
- Flexible - Follows undulations and contours and can be used on slopes
- Quick and easy to install - Supplied pre-assembled with a simple clipping mechanism
- Aesthetically pleasing - Overfill with loose aggregate, covering the plastic panel to give an excellent natural appearance
- Colour options available - Available in black or white
- Parking bay markers available – White square inserts for marking out parking bays
Gallery
Gravelrings are coming in packs: 4 x panels (500 mm x 500 mm each) per pack = 1 square metre (sqm)
Technical data
|
Panel Size |
500mm x 500mm |
|
Panel Depth |
25mm |
|
Cell Diameter |
50mm |
|
Gravel Size (recommended) |
6mm - 20mm (angular quarried aggregate only, marine washed, rounded and mixed aggregates should not be used) |
|
Gravel Demand |
58 – 67kg per m2 |
|
Material |
UV stabilised HDPE |
|
Resistance |
Chemical resistant |
|
Colour |
Black or White |
|
Load Bearing Capacity |
In excess of 350 tonnes per m²* |
|
Gradients |
Panels can be laid on slopes depending on the gradient (contact us for advice) |
*When filled with 6 – 20mm angular gravel to a depth of 15mm above the top of the cells
For further information on Earthworx Ground Control Gravelrings 500 mm x 500 mm, please speak to a member of our technical sales team on 01952 641949.
