Description
Earthworx Gravelrings are a cost effective method to providing a stable and permeable gravel retention system to surfaces. Ideal for use on driveways, walkways, car parking areas on estates, golf courses and caravan parks. The unique design stops loose aggregate moving from the cells making it wheelchairs and pushchair user friendly.
Groundtex Geotextile Fabric can be used underneath the gravelrings as a weed membrane.
| Before | After |
|---|---|
 |
 |
Key Features
- Excellent load bearing capacity - 350 tonnes per m²
- Flexible - Follows undulations and contours and can be used on slopes
- Quick and easy to install - Supplied pre-assembled with a simple clipping mechanism
- Aesthetically pleasing - Overfill with loose aggregate, covering the plastic panel to give an excellent natural appearance

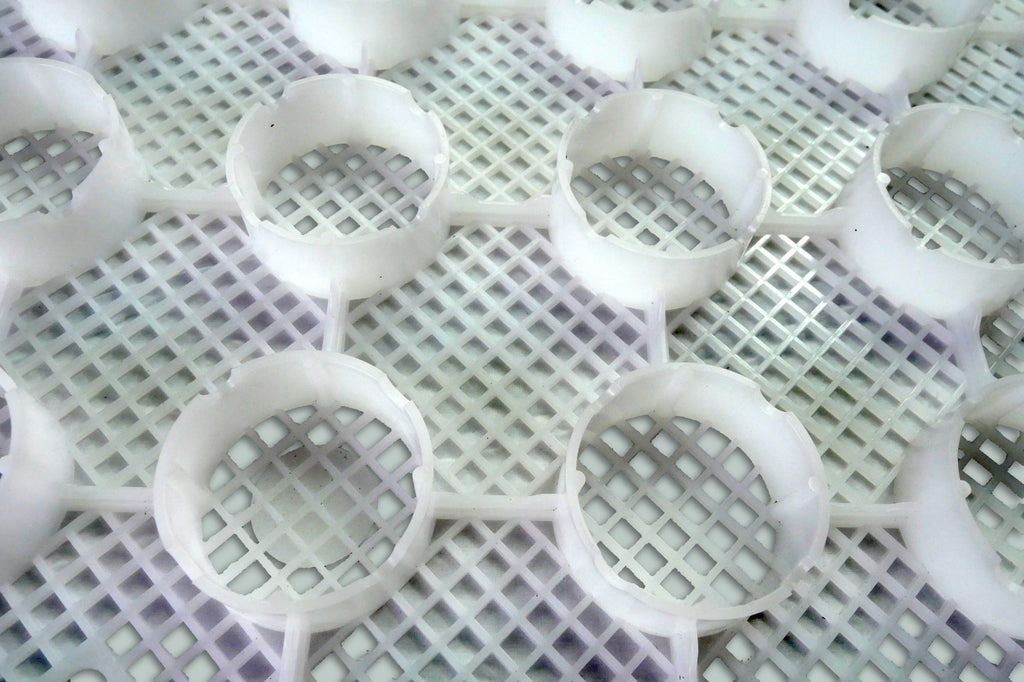

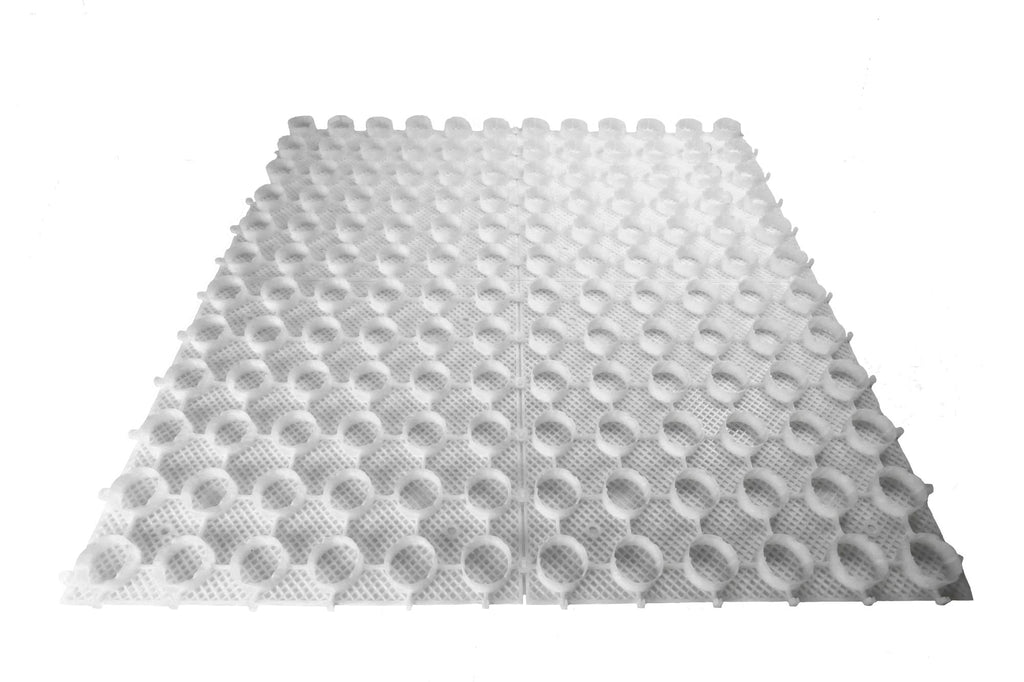

- Colour options available - Available in black or white
- Parking bay markers available – White square inserts for marking out parking bays

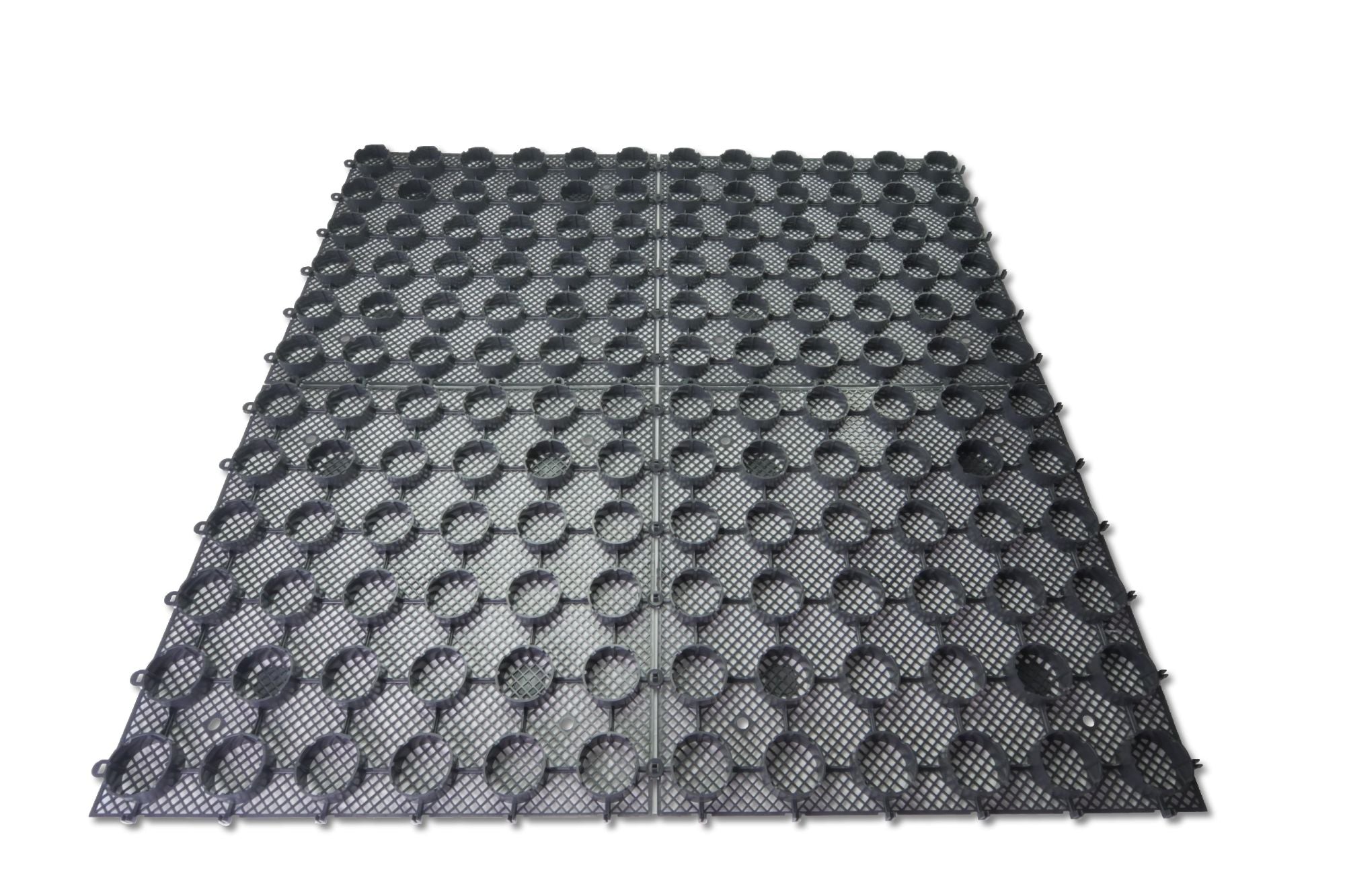

Gravelrings are coming in packs: 4 x panels (500 mm x 500 mm each) per pack = 1 square metre (sqm)
Technical data
|
Panel Size |
500mm x 500mm |
|
Panel Depth |
25mm |
|
Cell Diameter |
50mm |
|
Gravel Size (recommended) |
6mm - 20mm (angular quarried aggregate only, marine washed, rounded and mixed aggregates should not be used) |
|
Gravel Demand |
58 – 67kg per m2 |
|
Material |
UV stabilised HDPE |
|
Resistance |
Chemical resistant |
|
Colour |
Black or White |
|
Load Bearing Capacity |
In excess of 350 tonnes per m²* |
|
Gradients |
Panels can be laid on slopes depending on the gradient (contact us for advice) |
*When filled with 6 – 20mm angular gravel to a depth of 15mm above the top of the cells
For further information or for large area quotes, please contact our sales team on 01952 897917 .
